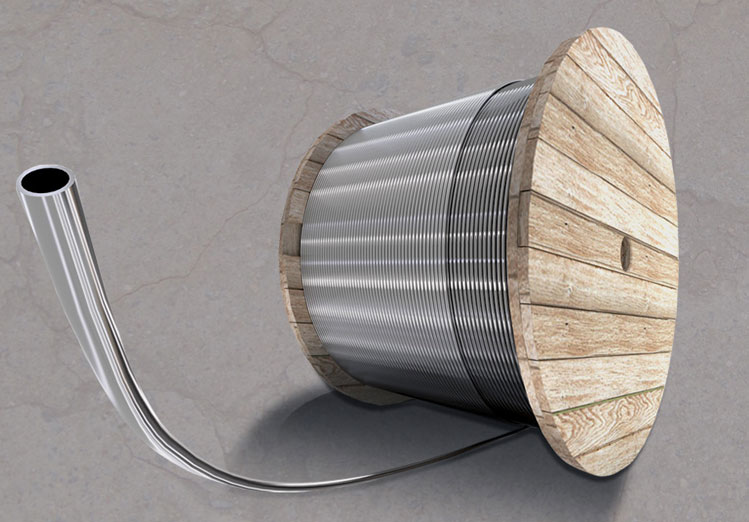

Welded & Floated Plug Drawn

After the welding process, the tube is drawn through a die that has a floating plug inside the bore to refine the weld seam. This plug is not attached to a rod or mandrel; instead, it "floats" in the tube, surrounded by lubricant. The die reworks the weld seam to improve surface roughness, truly round outer diameter (OD). This type of tubing is referred to as "smooth" bore.

Send Message Download

Product Introduction

As a world-leading manufacturer of control lines, Shinda Creative® provides a wide range of high strength stainless steel and alloys, such as austenitic stainless steel, duplex stainless steel, nickel-based alloy, Monel alloy tubes and size is from 1/8” to 1”. Other alloys, sizes and options can be manufactured according to your requirements.

The Oil & Gas sector represents one of Shinda Tubing principal markets for supply of a wide range of tubular product forms and materials. Our control line products have been successfully used in some of the most aggressive subsea and deep sea conditions and we have a long proven track record of supplying products that meet the strict quality requirements of the Oil & Gas and geothermal energy sectors.

Advancements in technology for the efficient exploration and extraction of oil and gas have increasingly necessitated the use of long, continuous lengths and zero defects of stainless steel and nickel alloy tubing. This tubing is essential for applications such as hydraulic control, instrumentation, chemical injection, umbilical systems, etc.

Shinda can customize engineering Hi-tech (IP 71202220093537.7) 6000 Meters Ultra Length Seamless Tube without Girth Welding which is the best solution to withstand offshore unforgiving challenges like high temperatures, high pressures and extreme corrosion.

Shinda Creative® is your best choice!

Our advantage

1. Strong, Safety, Reliable
Our hydraulic control lines can be used in different environments, especially the most difficult environments such as high-temperature corrosion, ultrahigh pressure environments;

2. High-Quality, Long Service Life
With our quality control system, all of our control lines meet the strict quality requirements of the Oil & Gas and geothermal energy sectors, and have longer service life;

3. 6000 Meters ultra length control line
We can manufacture and produce up to 6000 meters ultra length seamless tube withou girth welding;

4. Reduce Your Operation Cost
Your operation cost and maintenance cost can be reduced by the installation of reliable, safety, and long service life control lines;

5. Customizable
We can manufacture hydraulic control lines according to your requirements;

Product Parameter

Material	Outer Diameter	Wall Thickness	Tensile Strength	Yield Strength	Internal Pressure	Hydro Test	Burst Strength	Collapse Strength
Material	in.	in.	psi	psi	psi	psi	psi	psi
825 Welded & Floated Plug Drawn	0.125	0.028	108,000	90,000	42,200	38,400	50,600	27,700
	0.125	0.035	108,000	90,000	56,000	51,000	67,200	32,600
	0.25	0.028	108,000	90,000	19,200	17,500	23,100	15,700
	0.25	0.035	110,000	95,000	26,000	23,700	30,200	20,100
	0.25	0.049	108,000	95,000	38,600	35,100	43,900	26,700
	0.25	0.065	108,000	90,000	51,900	47,200	62,300	31,300
	0.375	0.035	108,000	90,000	15,800	14,400	19,000	13,400
	0.375	0.049	108,000	90,000	23,000	20,900	27,600	18,100
	0.375	0.065	108,000	90,000	31,800	28,900	38,100	23,000
	0.375	0.080	108,000	90,000	40,800	37,100	48,900	27,100
	0.500	0.035	108,000	90,000	11,600	10,600	14,000	10,300
	0.500	0.049	108,000	90,000	16,700	15,200	20,100	14,000
	0.500	0.065	108,000	90,000	22,900	20,800	27,500	18,000
	0.500	0.080	108,000	90,000	29,000	26,400	34,800	21,500
	0.625	0.049	108,000	90,000	13,200	12,000	15,800	11,400
	0.625	0.065	108,000	90,000	17,900	16,300	21,500	14,800
316L Welded & Floated Plug Drawn	0.125	0.028	70,000	40,000	15,700	14,300	27,600	12,600
	0.125	0.035	70,000	40,000	20,600	18,700	36,100	14,800
	0.25	0.028	70,000	40,000	7,300	6,600	12,800	7,100
	0.25	0.035	70,000	40,000	9,400	8,600	16,400	8,700
	0.25	0.049	70,000	40,000	13,700	12,500	24,000	11,500
	0.25	0.065	70,000	40,000	19,200	17,500	33,600	14,200
	0.375	0.035	70,000	40,000	5,700	5,200	9,900	5,800
	0.375	0.049	70,000	40,000	8,200	7,500	14,300	7,800
	0.375	0.065	70,000	40,000	11,200	10,200	19,600	9,900
	0.375	0.080	70,000	40,000	14,200	12,900	24,900	11,800
	0.500	0.035	70,000	40,000	4,200	3,800	7,400	4,400
	0.500	0.049	70,000	40,000	6,000	5,500	10,500	6,100
	0.500	0.065	70,000	40,000	8,200	7,500	14,300	7,800
	0.500	0.080	70,000	40,000	10,300	9,400	18,000	9,300
	0.625	0.049	70,000	40,000	4,700	4,300	8,300	4,900
	0.625	0.065	70,000	40,000	6,400	5,800	11,200	6,400
625 Welded & Floated Plug Drawn	0.125	0.028	100,000	40,000	15,200	13,800	38,100	12,300
	0.125	0.035	100,000	40,000	19,900	18,100	49,800	14,500
	0.25	0.028	100,000	40,000	7,100	6,500	17,800	7,000
	0.25	0.035	100,000	40,000	9,100	8,300	22,700	8,500
	0.25	0.049	100,000	40,000	13,300	12,100	33,200	11,200
	0.25	0.065	100,000	40,000	18,500	16,800	46,400	13,900
	0.375	0.035	100,000	40,000	5,900	5,400	14,700	5,900
	0.375	0.049	100,000	40,000	8,500	7,700	21,100	8,000
	0.375	0.065	100,000	40,000	11,600	10,600	29,000	10,200
	0.375	0.080	100,000	40,000	14,700	13,400	36,800	12,000
	0.500	0.035	100,000	40,000	4,300	3,900	10,900	4,600
	0.500	0.049	100,000	40,000	6,200	5,600	15,500	6,200
	0.500	0.065	100,000	40,000	8,400	7,600	21,100	8,000
	0.500	0.080	100,000	40,000	10,600	9,600	26,600	9,600
	0.625	0.049	100,000	40,000	4,900	4,500	12,300	5,100
	0.625	0.065	100,000	40,000	6,600	6,000	16,600	6,600
2205 Welded & Floated Plug Drawn	0.125	0.028	95,000	80,000	29,200	26,600	34,600	23,900
	0.125	0.035	95,000	80,000	38,100	34,700	45,200	28,200
	0.25	0.028	95,000	80,000	13,700	12,500	16,300	13,500
	0.25	0.035	95,000	80,000	17,500	15,900	20,800	16,500
	0.25	0.049	95,000	80,000	25,600	23,300	30,300	21,900
	0.25	0.065	95,000	80,000	35,600	32,400	42,300	27,200
	0.375	0.035	95,000	80,000	11,400	10,400	13,500	11,500
	0.375	0.049	95,000	80,000	16,300	14,800	19,400	15,600
	0.375	0.065	95,000	80,000	22,400	20,400	26,600	19,900
	0.375	0.080	95,000	80,000	28,400	25,800	33,700	23,500
	0.500	0.035	95,000	80,000	8,900	8,100	10,600	9,400
	0.500	0.049	95,000	80,000	12,800	11,600	15,200	12,800
	0.500	0.065	95,000	80,000	17,400	15,800	20,600	16,400
	0.500	0.080	95,000	80,000	21,900	19,900	26,000	19,600
	0.625	0.049	95,000	80,000	10,100	9,200	12,000	10,400
	0.625	0.065	95,000	80,000	13,600	12,400	16,200	13,500
2507 Welded & Floated Plug Drawn	0.125	0.028	116,000	90,000	32,800	29,800	42,300	26,900
	0.125	0.035	116,000	90,000	42,900	39,000	55,200	31,800
	0.25	0.028	116,000	90,000	15,400	14,000	19,900	15,200
	0.25	0.035	116,000	90,000	19,700	17,900	25,400	18,600
	0.25	0.049	116,000	90,000	28,700	26,100	37,100	24,600
	0.25	0.065	116,000	90,000	40,100	36,500	51,700	30,600
	0.375	0.035	116,000	90,000	12,800	11,600	16,500	13,000
	0.375	0.049	116,000	90,000	18,400	16,700	23,700	17,600
	0.375	0.065	116,000	90,000	25,200	22,900	32,400	22,400
	0.375	0.080	116,000	90,000	32,000	29,100	41,200	26,400
	0.500	0.035	116,000	90,000	10,000	9,100	12,900	10,500
	0.500	0.049	116,000	90,000	14,400	13,100	18,500	14,300
	0.500	0.065	116,000	90,000	19,500	17,700	25,200	18,400
	0.500	0.080	116,000	90,000	24,600	22,400	31,700	22,000
	0.625	0.049	116,000	90,000	11,300	10,300	14,600	11,700
	0.625	0.065	116,000	90,000	15,300	13,900	19,800	15,200
MONEL Welded & Floated Plug Drawn	0.125	0.028	70,000	28,000	10,700	9,700	26,600	8,600
	0.125	0.035	70,000	28,000	13,900	12,600	34,900	10,100
	0.25	0.028	70,000	28,000	5,000	4,600	12,400	4,900
	0.25	0.035	70,000	28,000	6,400	5,800	15,900	5,900
	0.25	0.049	70,000	28,000	9,300	8,500	23,200	7,900
	0.25	0.065	70,000	28,000	13,000	11,800	32,500	9,700
	0.375	0.035	70,000	28,000	4,100	3,700	10,300	4,200
	0.375	0.049	70,000	28,000	5,900	5,400	14,800	5,600
	0.375	0.065	70,000	28,000	8,100	7,400	20,300	7,100
	0.375	0.080	70,000	28,000	10,300	9,400	25,800	8,400
	0.500	0.035	70,000	28,000	3,000	2,700	7,600	3,200
	0.500	0.049	70,000	28,000	4,300	3,900	10,900	4,400
	0.500	0.065	70,000	28,000	5,900	5,400	14,800	5,600
	0.500	0.080	70,000	28,000	7,400	6,700	18,600	6,700
	0.625	0.049	70,000	25,000	3,100	2,800	8,600	3,200
	0.625	0.065	70,000	25,000	4,100	3,700	11,600	4,100
