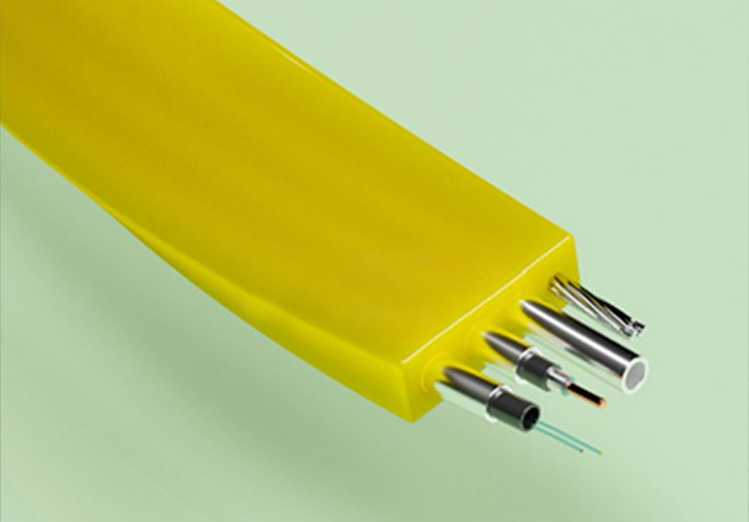

Tubing Encapsulated Fiber

Shinda is a leading manufacturer of downhole fiber optic cables which are used in the oil & gas industry. Downhole fiber optic cable combines the copper conductor, optical fibers and armor within one same cable structure. This construction is intended to withstand elevated temperatures, high pressure and corrosive environments. We can provide the varies downhole cable solution for each customer specific applications.

Send Message Download

Product Introduction

Main Features of Tubing Encapsulated Fiber

Operating temperature up to 300°C;

Range of sizes according to customer's requirement;

Can be pumped into coiled tubing;

Can be with bumper, encapsulation and wire rope armour;

Customized according to customer requirement;

Application

Distrubuted Temperature Sensing (DTS)

Distributed Acoustic Sensing (DAS)

Distributed Vibration Sensing (DVS)

High-speed remote transmission

Real time monitoring

Product Forms

Quality Assurance

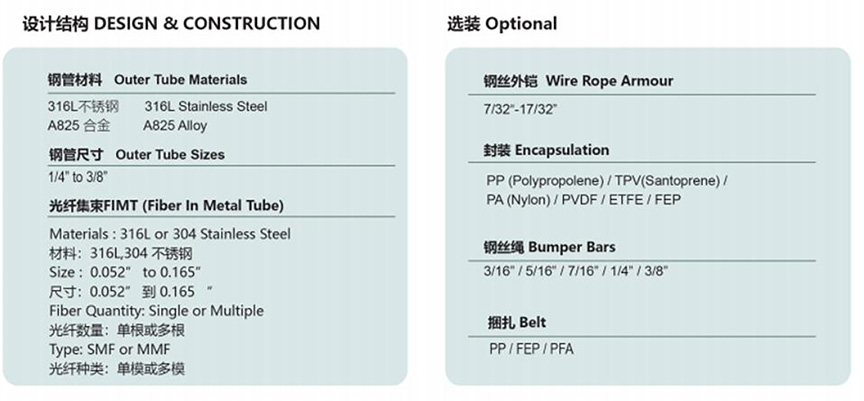

Product Specifications for Tubing Encapsulated Fiber

	Copper Conductors	16 AWG or 18 AWG
	Outer Tube Diameter	1/4"-3/8"
	Outer Tube Wall Thickness	0.028"-0.065"
	Outer Tube Material	Stainless Steel 316L incoloy® 825
	Fiber Types	Singlemode. Multimode
	Encapsulation	11mm x 11mm
	Polymer Types	Polypropylene/PVDF/ Nylon/ Santoprene
